Tablet Making Machine (Manual) GZH-351A
24999
Alternative Name: Kapoor Making Machine/ Camphor Making Machine/ Medicine Making Machine

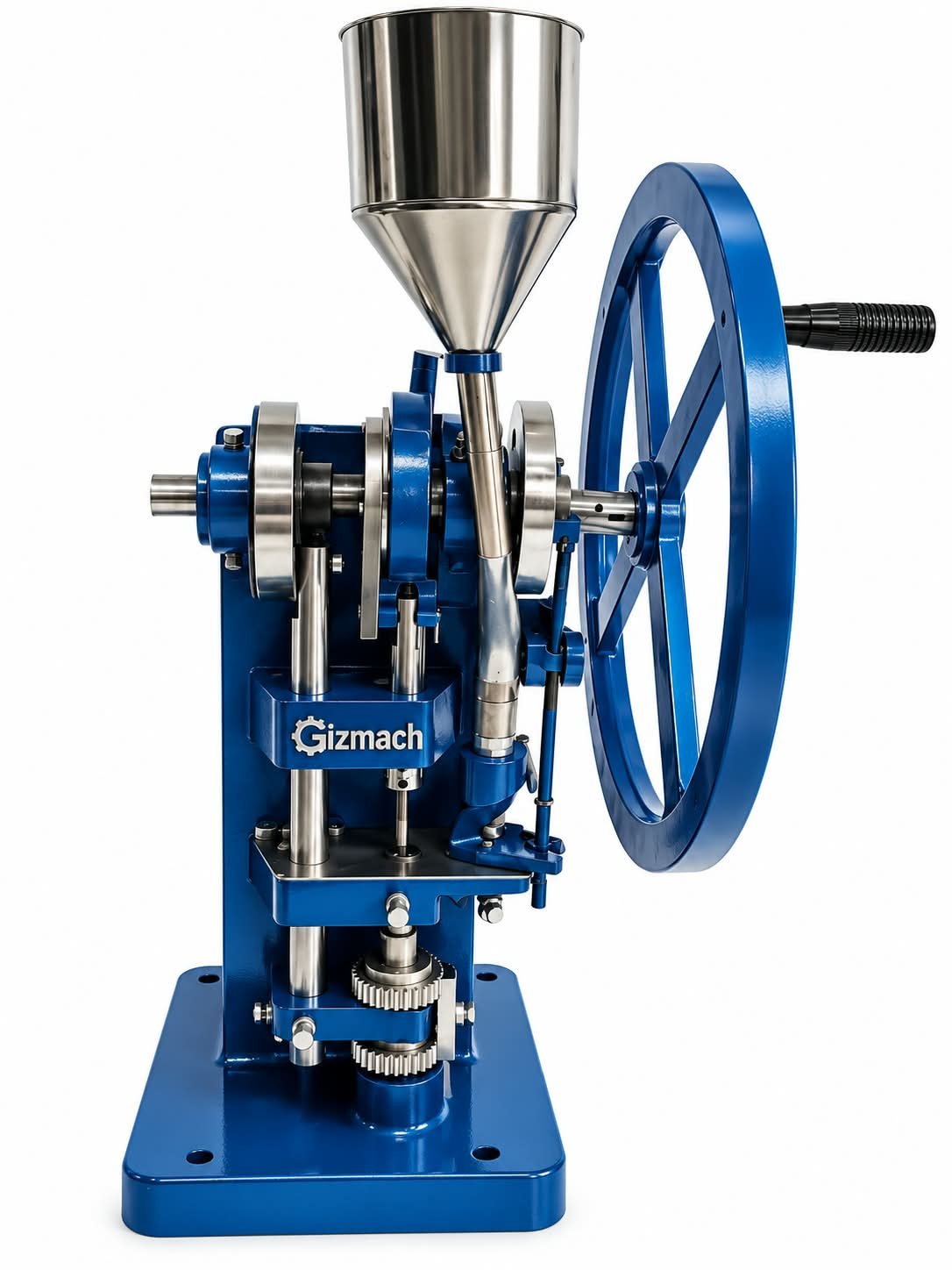

The Gizmach Tablet Making Machine (Single Punch) Hand Operated GZH-351A is a high-quality manual tablet compression machine designed for efficient and precise tablet production in pharmaceutical, Ayurvedic, herbal, homeopathic, educational, and research applications. Built for durability and smooth operation, this hand-operated tablet punching machine is ideal for small-scale manufacturing, laboratory testing, formulation development, and training purposes. Manufactured with a heavy-duty cast iron body and advanced eccentric pressure system, the GZH-351A ensures stable operation, accurate tablet compression, and long-lasting performance. The machine is equipped with an automatic compression and ejection mechanism that operates with every revolution of the wheel drive, improving productivity and reducing manual effort.
The Gizmach Hand Operated Tablet Making Machine (Single Punch) is a robust and precision-engineered manual tablet compression machine designed for efficient tablet production in pharmaceutical, Ayurvedic, herbal, homeopathic, laboratory, educational, research, and formulation development applications.
Built with a heavy-duty cast iron body, the machine provides excellent stability, durability, and reliable performance during operation. It's efficient eccentric pressure mechanism ensures smooth and consistent tablet compression, while the automatic compression and ejection mechanism operates with every revolution of the hand wheel, reducing manual effort and improving productivity.
The machine is equipped with a stainless steel hopper and durable rubber feeding tube for smooth and controlled material feeding. Tablet thickness and hardness can be adjusted easily using the provided adjustment and locking mechanism, allowing users to achieve the required tablet specifications.
The machine is fitted with durable chromium steel punches and dies, offering excellent wear resistance, precision, and long service life.
It is suitable for producing tablets of up to approximately 1000 mg, depending on the selected punch and die size, material characteristics, and formulation.
Key Features
- Hand operated tablet punching machine.
- Suitable for tablets up to 1000 mg capacity.
- Available die and punch sizes: 6 mm, 9 mm, and 12 mm (Any One).
- Automatic compression and ejection system.
- Heavy-duty cast iron body construction.
- Advanced eccentric pressure mechanism for smooth operation.
- Stainless steel hopper with rubber tube connection.
- Adjustable tablet thickness and hardness settings.
- Chromium steel die and punch set for durability and precision.
- Compact, reliable, and easy to operate.
Product Specifications
| Model No |
GZH-351A |
|---|---|
| Production capacity: | 30-50 tablets per min |
| Diameter range | 6-12mm |
| Maximum tablet thickness: | 2-6mm |
| Machine weight: | 60-70 KG with Packing |
| Dimensions | 320 * 240 * 550mm |
| Material | Cast Iron |
| Power |
Manual operation, no electricity required |
Applications
Suitable for:
- Pharmaceutical laboratories
- Ayurvedic and herbal medicine preparation
- Homeopathic tablet manufacturing
- Educational and research institutions
- Small-scale tablet production
- R&D and formulation testing
Benefits
- Provides accurate and uniform tablet compression.
- Easy adjustment for tablet hardness and thickness.
- Durable and stable heavy-duty construction.
- Efficient automatic compression and ejection mechanism.
- Ideal for laboratory and small-batch production applications.
Specifications
Tablet Shape: Round
Tablet Diameter: 6 mm – 12 mm
⚡ Powder Conditions (Mandatory for Proper Tablet Formation):
Powder must be granulated.
Powder must be moisture-free.
Powder must include a binding agent.
Note: If powder conditions are not fulfilled, tablets will not be formed properly.
